Whale1313FOI is a 13 x 13 cm real-time imaging, amorphous silicon, flat panel detector. With a 84um pixel size, it provides superior imaging quality and high image signal-to-noise ratio. The Whale1313FOI structural design effectively reduces the bending radius of the detector outlet, shortening the wiring space for easy installation and integration of systems. Its embedded firmware image calibration minimizes the difficulty of software development and resource consumption for computer hardware configuration.
Key features for amorphous silicon technology
● Large dose dynamic range
● Long life time
|
Technology |
|
|
Sensor |
A-Si |
|
Scintillator |
GOS / CSI |
|
Active Area |
129 x 129 mm |
|
Pixel Matrix |
1536 x 1536 |
|
Pixel Pitch |
84 μm |
|
AD Conversion |
16 bits |
|
Interface |
|
|
Communication Interface |
2.5G Ethernet |
|
Exposure Contro |
Pulse Sync In / Pulse Sync Out |
|
Mode |
Software Mode / HVG Sync Mode / FPD Sync Mode |
|
Frame Speed |
25 fps |
|
Operating System |
Windows7 / Windows10 OS 32 bits or 64 bits |
|
Technical Performance |
|
|
Resolution |
5.9 lp/mm |
|
Energy Range |
40-160 KV |
|
Lag |
0.8% @1st frame |
|
Dynamic Range |
≥75dB |
|
Sensitivity |
420 lsb/uGy |
|
SNR |
45 dB @(20000lsb) |
|
MTF |
78% @(1 lp/mm) |
|
49% @(2 lp/mm) |
|
|
31% @(3 lp/mm) |
|
|
DQE |
58% @(0 lp/mm) |
|
43% @(1 lp/mm) |
|
|
29% @(2 lp/mm) |
|
|

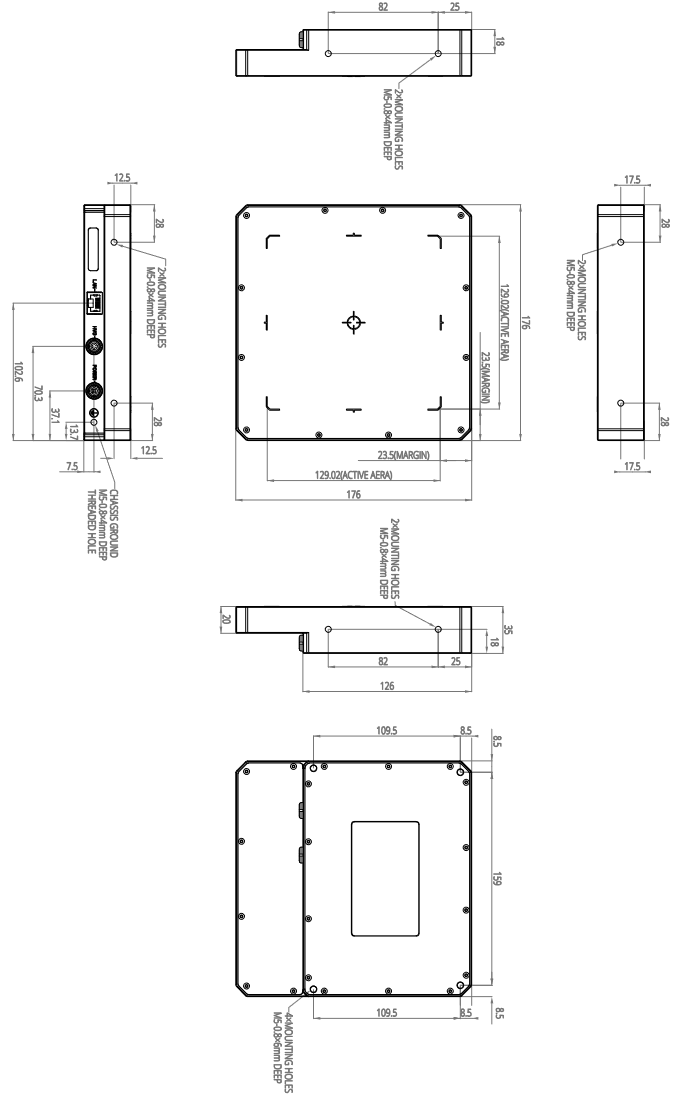

Mechanical |
|
|
Dimension(H x W x D) |
176 x 176 x 35 mm |
|
Weight |
1.5 Kg |
|
Sensor Protection Material |
Carbon Fiber |
|
Housing Material |
Aluminum Alloy |
|
Environmental |
|
|
Temperature Range |
10~35℃(operating);-10~50℃(storage) |
|
Humidity |
30~70% RH(non-condensing) |
|
Vibration |
IEC/EN 60721-3 class 2M3(10~150 Hz,0.5 g) |
|
Shock |
IEC/EN 60721-3 class 2M3(11 ms,2 g) |
|
Dust and Water Resistant |
IPX0 |
|
Power |
|
|
Supply |
100~240 VAC |
|
Frequency |
50/60 Hz |
|
Consumption |
8W |
|
Regulatory |
|
|
CFDA |
|
|
FDA |
|
|
CE |
|
 |
|
